Burn Area Calculator (Lund-Browder chart)
This calculator estimates burn area for adults and children using the Lund-Browder chart. Select the age first, then click on each body part to select the burned area.
📋 Body Surface Area Ratio by Age
- All ages: Lund-Browder chart applied (age-specific body proportion differences reflected)
- Adults (15 years and older): Fluid calculation using Parkland Formula
- Children (0-14 years): Fluid calculation using Galveston Formula
Pediatric characteristics: The younger the age, the larger the head proportion and the smaller the leg proportion.
🔄 Anterior View
Head/Neck
Arms
Trunk
Legs
Other
🔄 Posterior View
Head/Neck
Arms
Trunk
Legs
Other
Total Burn Area
Selected Body Parts:
No body parts selected yet.
💧 Fluid Resuscitation Formula
Adults (Parkland Formula): Weight(kg) × %TBSA × 4ml = Total 24-hour fluid volume
Children (Galveston Formula): 5000ml/m² × BSA(m²) + 1500ml/m² × Burn area(m²) = Total 24-hour fluid volume
- First 8 hours: 50% of total fluid volume (Ringer’s Lactate)
- Next 16 hours: 50% of total fluid volume (Ringer’s Lactate)
- %TBSA: Includes only 2nd degree or higher burns (excludes 1st degree burns)
- BSA: Uses Mosteller formula (√[(height×weight)/3600])
Note: Children use the Galveston Formula due to their higher weight-to-body surface area ratio. Actual treatment should be determined by medical professionals.
⚠️ Warning: The Lund-Browder chart is applied to all ages. For children, body proportions vary significantly by age, so accurate age selection is important. Actual treatment should be determined by medical professionals.

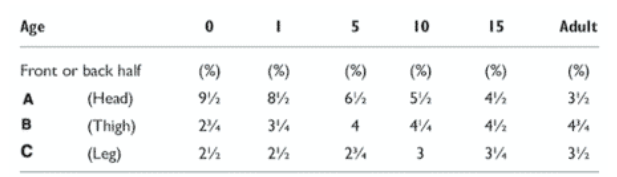

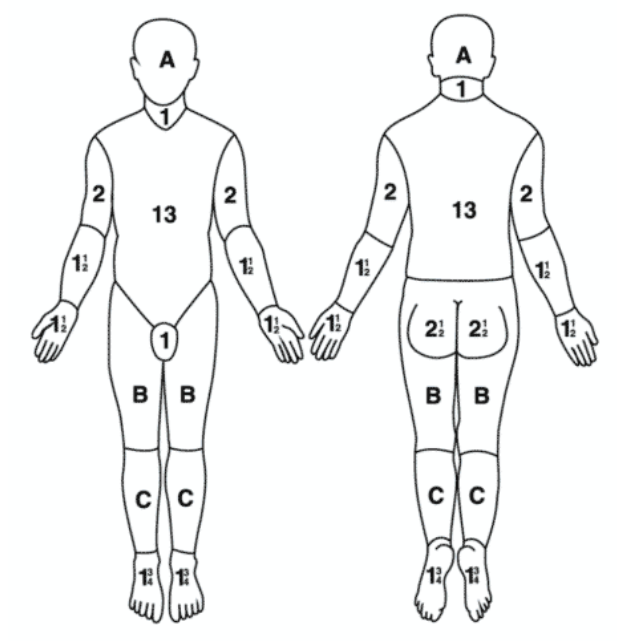

| Lund and Browder Chart (%) | Age 0–1 | Age 1–5 | Age 5–10 | Age 10–15 | Age ≥15 | ||
| Anterior Body | Head/Neck | Anterior Head | 9.5 | 8.5 | 6.5 | 5.5 | 3.5 |
| Anterior Neck | 1 | 1 | 1 | 1 | 1 | ||
| Arms | Left Upper Arm | 2 | 2 | 2 | 2 | 2 | |
| Right Upper Arm | 2 | 2 | 2 | 2 | 2 | ||
| Left Forearm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Right Forearm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Left Hand | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Right Hand | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Trunk | Anterior Trunk | 13 | 13 | 13 | 13 | 13 | |
| Legs | Left Thigh (Anterior) | 2.75 | 3.25 | 4 | 4.25 | 4.75 | |
| Right Thigh (Anterior) | 2.75 | 3.25 | 4 | 4.25 | 4.75 | ||
| Left Lower Leg (Anterior) | 2.5 | 2.5 | 2.75 | 3 | 3.5 | ||
| Right Lower Leg (Anterior) | 2.5 | 2.5 | 2.75 | 3 | 3.5 | ||
| Left Foot | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | ||
| Right Foot | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | ||
| Others | Perineum | 1 | 1 | 1 | 1 | 1 | |
| Posterior Body | Head/Neck | Posterior Head | 9.5 | 8.5 | 6.5 | 5.5 | 3.5 |
| Posterior Neck | 1 | 1 | 1 | 1 | 1 | ||
| Arms | Left Upper Arm | 2 | 2 | 2 | 2 | 2 | |
| Right Upper Arm | 2 | 2 | 2 | 2 | 2 | ||
| Left Forearm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Right Forearm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Left Hand | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Right Hand | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Trunk | Posterior Trunk | 13 | 13 | 13 | 13 | 13 | |
| Legs | Left Thigh (Posterior) | 2.75 | 3.25 | 4 | 4.25 | 4.75 | |
| Right Thigh (Posterior) | 2.75 | 3.25 | 4 | 4.25 | 4.75 | ||
| Left Lower Leg (Posterior) | 2.5 | 2.5 | 2.75 | 3 | 3.5 | ||
| Right Lower Leg (Posterior) | 2.5 | 2.5 | 2.75 | 3 | 3.5 | ||
| Left Foot | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | ||
| Right Foot | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | ||
| Others | Left Buttock | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| Right Buttock | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||
